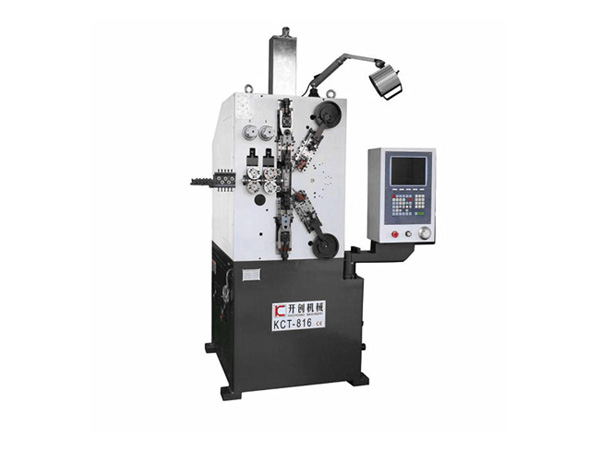

KCT-816 8 Axis CNC High-speed spring coiling machine

Description

  KCT-816 8 Axis CNC High-speed spring coiling machine, is my company in recent years to market success and applied a new eight axis computer spring machine, processing line is φ0.4-2.0mm (in diameter oil quenched steel wire for reference), mainly suitable for processing all kinds of precision compression spring, torsion spring and simple line type products for example, wave spring, pressure spring and pagoda spring etc..

Parameters

    機 型    Model   KCT-816
    軸 數    Axis Count   8 軸
    加工線徑    Wire Size Range   φ0.4-2.0mm
    最大彈簧外徑    Max Outside Diameter   φ50mm
    最大彈簧螺矩    Max Pitch Of Spring   33mm
    最大送線速度    Max Feeding Speed   300m/min
    旋繞比    Spring Index   3
    送線輪組數    Wire Feeding Wheel Count      2 pairs(組)
    送線伺服電機    Feeding Servo Motor   1.8.kw
    切刀伺服電機       Cutter Servo Motor   1.0kw*2
    凸輪伺服電機    Cam Servo Motor   0.75kw*2
    螺矩伺服電機    Pitch Servo Motor   0.75kw
    芯軸上下移動電機        Mandrel moving Up-down Servo Motor       0.75kw
    退芯伺服電機    Mandrel Return Servo Motor   0.4kw
    機器尺寸    Dimension(LxWxH)   900x1100x1700mm
    機器重量    Weight   610kg
    電 源    Power AC   3-380VAC 50HZ



  Our company's KCT-816 8 Axis CNC High-speed spring coiling machine mainly imported from Japan Yaskawa servo motor and Taiwan computer Windows7 control system, the shaft can operate independently or synchronous operation. The company's design team has made great reform in innovation and improvement, and has realized the man-machine dialogue truly, has one minute spring molding, the production speed is fast, the precision is high, the noise is low, the debugging is more convenient. KCT-816 computer compression spring machine can realize the function of cutting, cutting and swing cutting in different angles, and also has the function of high-definition camera inspection.
